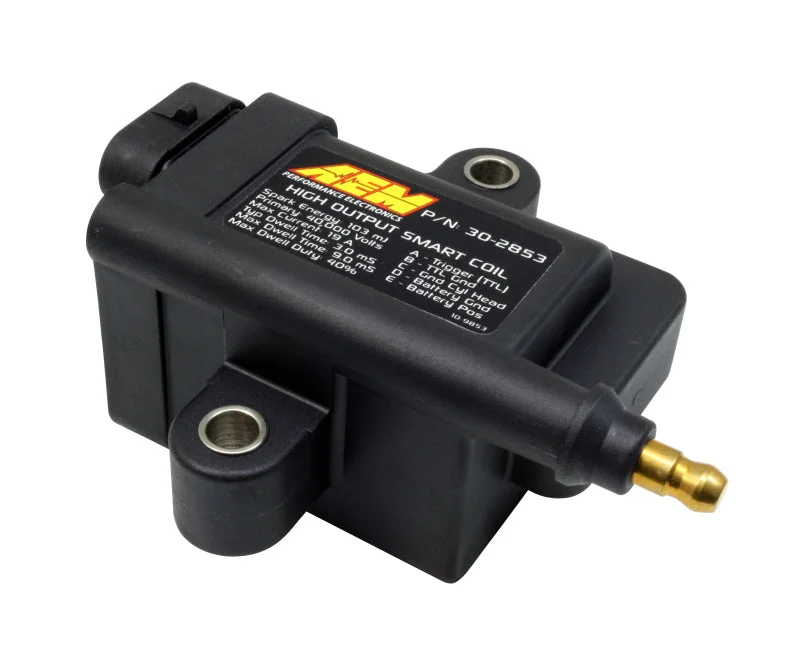

Name: AEM High Output Inductive Coil
SKU: 9546834805041
Availability: InStock

Description

AEM High Output Inductive Coil 30-2853

CDI Ignition Coil

Socket

40000 V

102 mA Peak Current

Round

BlackPit Stop USA offers AEM High Output Inductive Coil 30-2853 at low everyday prices. Be sure to check out all of our products from AEM Electronics including AEM Electronics Ignition Coils.

IMPORTANT: AEM High Output IGBT Smart and Dumb Coils are intended for coil-near-plug use ONLY. They are NOT intended for use on distributed applications and AEM cannot guarantee or warranty the performance of its IGBT coils when used on distributed ignition vehicles.Output (no load): 40kV minimumOutput (50pF load): 40kV +/- 10%Output Energy: 103 mJ +/- 7%Peak Secondary Current: 102 mA +/- 10%Arc Duration: 2.9mS +/- 10%Turns Ratio 71:1Maximum Current: 19 AmpsMaximum Battery Voltage: 17 VoltsBase Dwell: 3.0 mSMax Continuous Dwell: 9 mS but don’t exceed 40% duty cycleMax Intermittent Dwell: 80% duty cycle, 5 seconds maximumMating Connector: Packard/Delphi 12162825 “Pull to Seat”Mating Contacts: Packard/Delphi 12124075 “Pull to Seat”High Tension Wire Terminal: HEI “spark plug top” Style

Incredibly long spark duration, up to 2.9mS

Up to 40kV Output Voltage, without using a CDI

Deliver CDI-like spark energy-No CDI Module needed

Cost less than aftermarket LS1 coils

Can be mounted almost anywhere

Weather and Shockproof design

Can be mounted directly to the Engine

Product :

Ignition Coil Pack

High Output Inductive Smart Coil

Male HEI

40000V

Black

Universal

Sold Individually

AEM’s mission is to create industry-leading products to take your project to the next level. AEM’s wideband air-fuel gauge line is a world-renowned product found in everything from sporty daily drivers to full-blown race cars. Our water meth injection systems, gauges, digital dashes, and fuel system products follow that same path.
