Description
Race car drivers will tell you that the single sharp edge on spark plug electrodes wears out too fast for long term use. The E3 DiamondFire design presents multiple sharp edges to the circular sharp edge of the center electrode, which allows the spark to naturally seek the path of least resistance. The problem is that each time a spark jumps between two opposing spots of the electrode pair, the local resistance increases. After a few sparks, the local resistance becomes so high that the spark seeks alternate sites to initiate from and land on.
Multiple sharp edges give the spark more paths to follow, thus reducing wear on each part of the electrode. The E3 prototypes we tested outlasted all non-platinum spark plug in longevity even though they were made from mild steel. For production plugs, we use a special high-temperature alloy with a high nickel content plus additional elements to make an extremely long-lived electrode pair.
The E3 design also keeps its “freshness” much longer than standard plugs. DiamondFire plugs create more power while using less fuel (brake specific fuel consumption) than any other design. During our testing, we discovered that standard plugs degrade quickly, losing up to 10% of their power after just 50 hours of use (about 1, 200 miles in a typical car). This is why race car drivers change spark plugs between heats: The multiple sharp edges of the E3 DiamondFire design create better combustion when new and keep their edge “sharpness” for a considerable time.
Additionally, the three legs that support the special geometry of our design move heat out of the ground electrode, which helps the electrode last longer. The center electrodes are forged with a copper center core surrounded by a nickel alloy sheath and tip. The copper pulls heat out of the center electrode’s tip, which also helps durability. The copper core is virtually equal to platinum in extending electrode life.
Features:
E3 Spark Plug Flame Kernel Shape:
Flame moves toward piston and bulk air/fuel mixture – less quenching on cylinder walls
Reduced time delay in flame growth – shorter path to piston head
Faster flame growth compared to standard plugs
Larger flame kernel moves heat faster into combustion chamber
Larger flame front creates more localized pressure, making a faster pressure rise in cylinder during the power stroke
Vehicle Applications:
1969-1971 Mercury Cyclone
1970-1970 Ford Fairlane
1970-1970 Jeep J-4600
1970-1970 Pontiac Strato-Chief
1970-1972 Buick GS
1970-1974 GMC C25/C2500 Pickup
1970-1974 GMC C25/C2500 Suburban
1970-1982 Checker Marathon
1970-1984 Chevrolet C10 Suburban
1970-1986 Pontiac Parisienne
1970-1995 GMC Jimmy
1971-1973 GMC P15/P1500 Van
1971-1974 Ford Ranch Wagon
1971-1974 Mercury Colony Park
1971-1995 Chevrolet Blazer
1972-1984 Excalibur Phaeton
1973-1976 Chevrolet Laguna
1968-1969 Buick GS 400
1970-1970 Checker Deluxe
1970-1971 Oldsmobile F85
1970-1972 Chevrolet Kingswood
1970-1985 Chevrolet Impala
1970-1993 Mercury Cougar
1970-1995 Chevrolet Camaro
1971-1973 GMC P25/P2500 Van
1971-1974 Chevrolet G10 Van
1971-1974 Ford Country Sedan
1971-1974 Ford Country Squire
1971-1977 Ford Custom 500
1971-1993 Ford Thunderbird
1967-1985 Buick Riviera
1968-1970 Buick Sportwagon
1969-1970 Jeep J-2600
1969-1970 Jeep J-2700
1969-1971 Jeep J-2500
1970-1972 Chevrolet Brookwood
1970-1973 GMC C15/C1500 Suburban
1970-1974 Chevrolet K30 Pickup
1970-1974 GMC K35/K3500 Pickup
1970-1979 Ford Ranchero
1970-1981 Pontiac Laurentian
1970-1995 Ford Mustang
1971-1974 Chevrolet G30 Van
1971-1976 Mercury Montego
1971-1984 Avanti II
1972-1973 Pontiac GTO
1972-1981 Pontiac Catalina
1973-1983 Oldsmobile Omega
1973-1996 Ford F-250
1973-1997 Ford F-350
1975-1978 GMC C15
1975-1978 GMC C35
1975-1978 GMC G25
1975-1978 GMC K15
1975-1984 Chevrolet K10
1975-1985 Oldsmobile Delta 88
1975-1996 Chevrolet G30
1976-1978 GMC C15 Suburban
1977-1979 Lincoln Mark V
1977-1996 Ford E-350 Econoline Club Wagon
1978-1983 Dodge Diplomat
1979-1979 GMC P1500
1979-1981 Chrysler Newport
1979-1995 GMC K1500
1979-1995 GMC K1500 Suburban
1980-1982 American Motors Concord
1984-1984 Chevrolet Citation II
1972-1975 Pontiac Grandville
1975-1978 GMC C25
1975-1978 GMC G15
1975-1978 GMC K25 Suburban
1975-1979 Chevrolet P10
1975-1980 Dodge W200
1975-1980 Plymouth PB200
1975-1981 Ford Granada
1975-1995 Chevrolet G10
1975-1996 Ford E-350 Econoline
1976-1987 Oldsmobile Cutlass Supreme
1977-1978 Dodge Monaco
1977-1978 GMC K35
1977-1980 Plymouth Volare
1978-1982 Ford Fairmont
1980-1982 American Motors Spirit
1980-1983 Lincoln Mark VI
1981-1983 Plymouth PB150
1982-1982 Chrysler New Yorker
1973-1975 Buick Apollo
1973-1985 Buick Century
1973-1985 Lincoln Continental
1975-1975 GMC P15
1975-1978 Dodge D300
1975-1978 Ford Mustang II
1975-1980 Dodge Ramcharger
1975-1980 Mercury Monarch
1975-1983 Ford E-100 Econoline Club Wagon
1975-1985 Oldsmobile 98
1975-1989 Chevrolet P20
1975-1992 Oldsmobile Custom Cruiser
1975-1995 Chevrolet G20
1976-1978 GMC K15 Suburban
1977-1980 Pontiac Sunbird
1979-1995 GMC C1500 Suburban
1979-1995 GMC G1500
1979-1995 GMC G2500
1979-1995 GMC K2500 Suburban
1979-1995 GMC K3500
1980-1983 Jeep DJ5
1981-1982 Cadillac Eldorado
1981-1982 Cadillac Seville
1981-1983 Plymouth PB250
1982-1984 Pontiac 6000
1983-1983 Chrysler Fifth Avenue
1987-1988 Chevrolet R20
1987-1989 GMC R2500
1987-1991 GMC R3500
1988-1988 Chevrolet R10 Suburban
1988-1995 Chevrolet K2500
1989-1991 Chevrolet V3500
1991-1993 Buick Roadmaster
1992-1995 Chevrolet C1500 Suburban
1987-1991 Ford LTD Crown Victoria
1988-1995 Chevrolet S10
1991-1994 Oldsmobile Bravada
1987-1988 Chevrolet R20 Suburban
1988-1991 GMC S15 Jimmy
1989-1991 Chevrolet V1500 Suburban
1991-1993 Buick Commercial Chassis
1991-1995 GMC Sonoma
1992-1995 Chevrolet K1500 Suburban
1995-1995 Chevrolet Tahoe
1967-1967 Buick Gran Sport
1967-1970 Buick Wildcat
1969-1970 Jeep J-3500
1970-1970 Jeep J-4500
1970-1972 Chevrolet Townsman
1970-1974 GMC G35/G3500 Van
1970-1976 Ford Torino
1970-1979 Pontiac Acadian
1970-1984 Chevrolet K20 Suburban
1971-1974 GMC G25/G2500 Van
1972-1978 Pontiac Grand Safari
1973-1976 Lincoln Mark IV
1996-1996 Chevrolet Express 2500
1973-1980 Pontiac Grand Am
1973-1983 Chevrolet Malibu
1973-1983 Ford F-100
1975-1976 Ford Elite
1975-1978 Dodge W300
1975-1986 Mercury Grand Marquis
1975-1996 Ford Bronco
1975-1996 Ford F-150
1976-1976 Ford P-350
1976-1977 Ford P-500
1977-1980 Buick Skyhawk
1977-1983 Pontiac Phoenix
1977-1987 Dodge D150
1978-1981 Chrysler LeBaron
1978-1982 Mercury Zephyr
1978-1987 Dodge W150
1979-1985 Mercury Capri
1979-1995 GMC C2500
1979-1995 GMC C3500
1980-1982 Cadillac DeVille
1980-1983 Chrysler Cordoba
1981-1983 American Motors Eagle
1984-1992 Lincoln Mark VII
1987-1988 Chevrolet V30
1987-1991 GMC V3500
1988-1988 Chevrolet V10 Suburban
1988-1991 GMC R1500 Suburban
1988-1994 Chevrolet S10 Blazer
1990-1992 Cadillac Brougham
1992-1995 Chevrolet C2500 Suburban
1968-1969 Buick GS 350
1969-1970 Jeep J-3800
1970-1970 Chevrolet Estate
1970-1971 GMC K15/K1500 Suburban
1970-1974 Checker A11
1970-1974 Chevrolet K20 Pickup
1970-1974 GMC K25/K2500 Suburban
1970-1981 Chevrolet Bel Air
1970-1981 Pontiac LeMans
1970-1984 Chevrolet K10 Suburban
1971-1971 Chevrolet C10 Pickup
1971-1973 Buick Centurion
1971-1974 Ford Galaxie 500
1971-1974 GMC G15/G1500 Van
1971-1977 Pontiac Ventura
1971-1982 Mercury Marquis
1975-1976 Bricklin SV-1
1975-1980 Dodge B100
1975-1980 Plymouth Trailduster
1975-1983 Pontiac Grand LeMans
1975-1984 Chevrolet C10
1975-1987 Dodge W100
1975-1991 Ford E-250 Econoline Club Wagon
1976-1976 Ford P-400
1976-1980 Chevrolet Monza
1979-1997 GMC P3500
1980-1983 Chevrolet Citation
1980-1983 Dodge Mirada
1980-1993 Cadillac Fleetwood
1981-1983 Jeep Scrambler
1981-1984 Oldsmobile Toronado
1987-1988 Chevrolet V20 Suburban
1988-1995 Chevrolet C2500
1989-1991 Chevrolet R1500 Suburban
1989-1991 Chevrolet R3500
1989-1991 Chevrolet V2500 Suburban
1969-1970 Jeep J-3600
1970-1970 Jeep J-4700
1970-1973 Chevrolet Chevelle
1970-1974 Checker Taxicab
1970-1979 Chevrolet Nova
1970-1988 Chevrolet Monte Carlo
1971-1971 GMC C15/C1500 Pickup
1971-1971 GMC K15/K1500 Pickup
1971-1974 Chevrolet P30 Van
1971-1993 Chevrolet Caprice
1972-1974 Stutz Blackhawk
1975-1977 Ford Maverick
1975-1978 GMC G35
1975-1978 GMC P25
1975-1980 Dodge D200
1975-1980 Plymouth PB100
1975-1984 Chevrolet C30
1975-1991 Ford E-250 Econoline
1975-1996 Ford E-150 Econoline
1975-1997 Chevrolet P30
1977-1977 Pontiac Astre
1977-1978 Plymouth Fury
1977-1979 Ford LTD II
1977-1980 Lincoln Versailles
1977-1984 Chevrolet K30
1978-1984 Oldsmobile Cutlass Calais
1978-1987 Oldsmobile Cutlass Salon
1979-1989 GMC P2500
1980-1983 Jeep CJ7
1981-1984 DeTomaso Pantera
1981-1987 Dodge B150
1981-1987 Dodge D250
1982-1983 Chevrolet Celebrity
1986-1986 Jeep Comanche
1987-1988 Chevrolet R30
1988-1995 Chevrolet Astro
1988-1995 Chevrolet C1500
1988-1995 GMC Safari
1992-1995 Chevrolet K2500 Suburban
1992-1995 GMC Yukon
1969-1970 Jeep J-3700
1969-1971 Jeep J-100
1970-1970 Pontiac Tempest
1970-1972 Chevrolet Biscayne
1970-1974 Chevrolet C30 Pickup
1970-1974 Chevrolet G20 Van
1970-1974 GMC C35/C3500 Pickup
1970-1974 GMC K25/K2500 Pickup
1970-1981 Oldsmobile Cutlass
1970-1984 Chevrolet C20 Suburban
1972-1986 Pontiac Bonneville
1975-1980 Dodge B200
1975-1984 Chevrolet K20
1975-1984 Chevrolet K5 Blazer
1975-1987 Dodge D100
1977-1980 Oldsmobile Starfire
1979-1981 Dodge St. Regis
1979-1995 GMC C2500 Suburban
1979-1995 GMC K2500
1979-1996 GMC G3500
1981-1985 Lincoln Town Car
1982-1985 Oldsmobile Cutlass Ciera
1987-1991 GMC R2500 Suburban
1988-1990 GMC S15
1988-1991 GMC V1500 Suburban
1997-1997 Ford F-250 HD
1967-1983 Buick Skylark
1967-1985 Buick Electra
1968-1985 Buick LeSabre
1970-1972 Buick GS 455
1970-1973 Chevrolet C20 Pickup
1970-1974 Checker A11E
1970-1974 Chevrolet P10 Van
1970-1980 Buick Estate Wagon
1970-1987 Chevrolet El Camino
1970-1992 Pontiac Firebird
1971-1971 Chevrolet K10 Pickup
1971-1972 Ford Custom
1971-1973 GMC P35/P3500 Van
1971-1974 Chevrolet P20 Van
1971-1974 Mercury Monterey
1971-1977 GMC Sprint
1971-1986 Ford LTD
1971-1986 Jeep Wagoneer
The advanced E3 DiamondFire design increases combustion pressure and increases power in the engine.

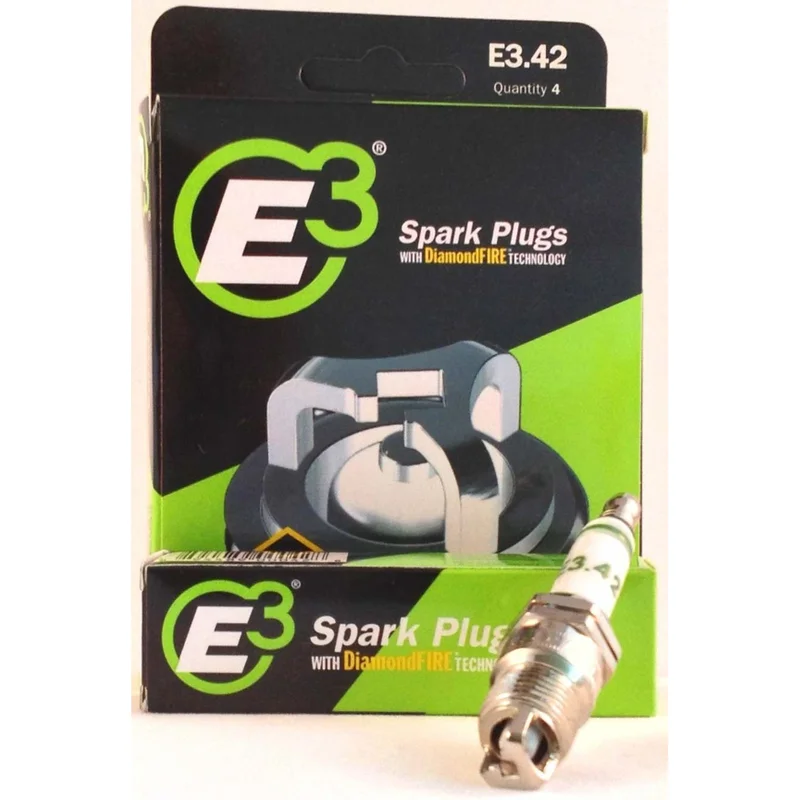

Product Descripton:
Spark Plug
Diamond Fire
14 mm Thread
0.438 in Reach
Tapered Seat
Resistor
Sold Individually
