Description

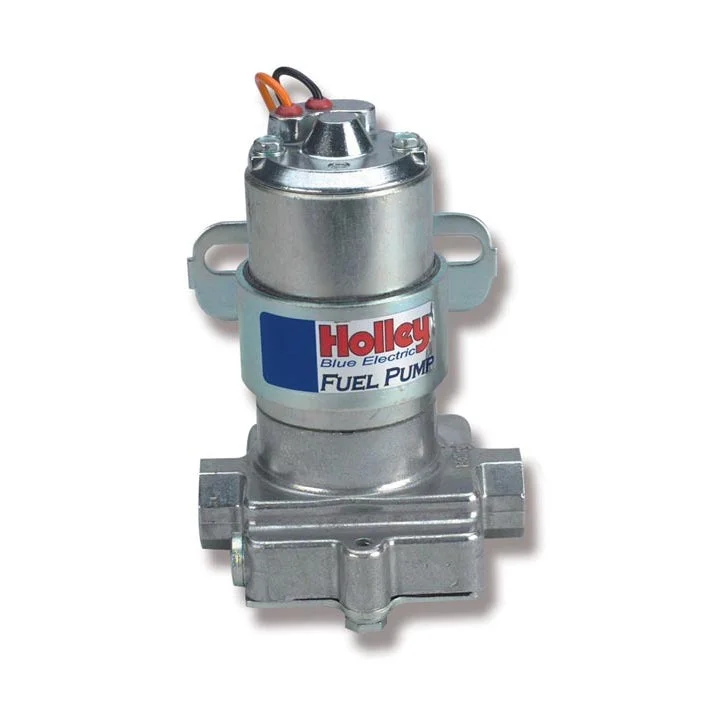

The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70’s. Their time proven rotor/vane design is known to get the job done in an affordable package.
Features: Tumble polished billet look
Lower housing casting designed for enhanced fuel flow and quiet operation
Motor draws only 3 amps current
7 1/2 amp fuse recommended
Improved design for street/strip applications
Not designed for use on aircraft of any type.
Distinctive OE Blue logo
Flows 110 GPH (free flow)
Flows 88 GPH at 9 psi
maximum pressure is 14 psi
Provides constant fuel flow with no pulsation
Has externally accessible pressure relief valve (max 14 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 3 lbs.
Includes mounting bracket
Repair kits are readily available
Can be serviced from the pump end
Not compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended
Not designed or recommended for use with fuel injection systems
Fuel pressure regulator not included
SPECS: Application: Universal
Bracket Color: Silver
Brand: Holley
Emission Code: 3
Free Flow GPH: 110
Free Flow LPH: 416
Fuel System: Carbureted
Fuel Type: Gasoline
Inlet Size: 3/8 inch NPT
Material: Aluminum
Motor Finish: Silver
Outlet Size: 3/8 inch NPT
Product Type: Fuel Pump
Pump Body Color: Silver
Part Number: 12-812-1
Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM’s popular LS engine are dominating the LS scene as well. Holley’s products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These should be used with 12 volt systems only.
Lower housing casting designed for enhanced fuel flow and quiet operation
Motor draws only 3 amps current
7 1/2 amp fuse recommended
Improved design for street/strip applications
Not designed for use on aircraft of any type.
Distinctive ΓÇ £Blue” logo
Flows 110 GPH (free flow)
Flows 88 GPH at 9 psi
maximum pressure is 14 psi
Provides constant fuel flow with no pulsation
Has externally accessible pressure relief valve (max 14 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 3 lbs
Includes mounting bracket
Repair kits are readily available
Can be serviced from the pump end
Not compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended
Not designed or recommended for use with fuel injection systems
Fuel pressure regulator not included
Product :
Fuel Pump
Electric
In-Line
88 gph at 9 psi
3/8 in NPT Female Inlet / Outlet
Bracket Included
Aluminum
Silver
Gas
Sold Individually
For over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel, and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
