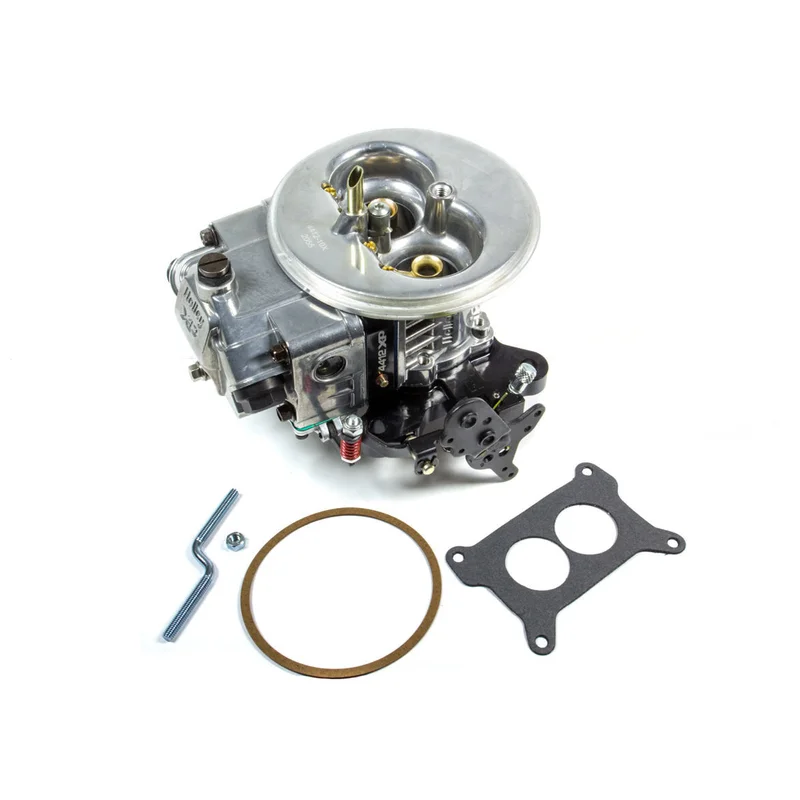

Name: Holley 500 CFM Ultra XP 2BBL Carburetor - Black Anodize / Polished
SKU: 9551516827953
Availability: InStock

Description

The original Holley 0-4412 has powered thousands of racers to the winners’ circle! How do you make it better? Add the proven design elements of the popular Ultra series for more tunability, more durability, more weight savings and more features! The Ultra XP 2bbl carburetors feature all aluminum construction for nearly 50% weight savings over their zinc counterparts, contoured venturi inlet for unobstructed airflow, screw in air bleeds for easy fine tuning, black anodized fully adjustable billet aluminum metering block and baseplate, high capacity fuel bowl which features 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh and a centered air cleaner flange for improved airflow and performance. Other notable features include wedged floats, knurled hand adjustable curb idle screw and down leg boosters. Ultra XP 2bbl carburetors are approved for use in NASCAR(R) Mid-West/West Coast Late Model Divisions and utilize the same venturi and throttle bore dimensions of the classic 4412 2bbl carburetor. Available in shiny or Hard Core Gray finishes, the Ultra XP 2bbl will outperform any production 2bbl available.

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM’s popular LS engine are dominating the LS scene as well. Holley’s products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Carburetor

Tumble polished aluminum with Black billet aluminum metering block and base plate

No choke tower for unobstructed airflow

Air bleeds moved outward to allow a smoother transition of airflow

Air cleaner flange centered over venturii for improved airflow and performance. 5/16-18 bent air cleaner stud included

Down-leg boosters for improved fuel signal

Contoured hex head squirter screw for streamlined airflow

Internal pump passage on metering block equipped with tunable bleed off

Same 1-3/8″ Venturii & 1-11/16″ Throttle Bore size and Throttle Plate/Throttle Shaft size of original 0-4412

Fuel bowl provides 20% more fuel capacity while controlling slosh with internal baffling

Clear sight windows on both sides of bowl for easy & safe fuel level adjustments

Fuel trough designed into floor of bowl to route fuel flow directly to the jets and assists in keeping jets covered by fuel

Built in drain plug provides easy access to empty contents of bowl

-8 (O-ring) inlet threads offer a large variety of plumbing options (come with an extended -8 O-ring to -8AN male adapter and -8 plug). Can be plumbed from either side

Throttle shaft rides in oil impregnated sintered bronze bushings for smooth throttle actuation

Throttle shaft capped to prevent entry of debris & contaminates

30cc pump with metal lever. Anti-siphon valve in mainbody to reduce pump pull over

Dedicated race-only throttle lever with all unnecessary street attachment points & tangs removed

Knurled (hand adjustable) curb idle screw allows for easy idle adjustment without the use of tools

Set screw for wide open throttle stop adjustment

Wedge float provides fuel control while cornering

100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Product :

Carburetor

Ultra XP

2-Barrel

500 CFM

Holley Flange

No Choke

Dual Inlet

Aluminum

Black Anodized / Tumble Polished

Sold Individually
