Description

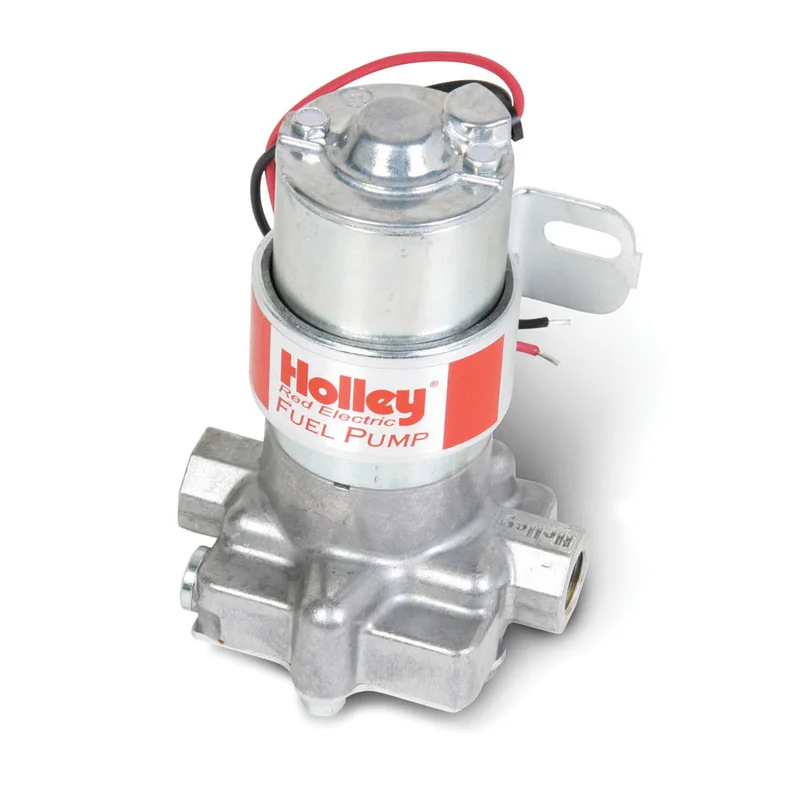

97 GPH RED® Electric Fuel Pump.
Features:
Tumble Polished Billet Look
New Lower Housing Casting for Enhanced Fuel Flow and Quieter Operation
Maximum Pressure Is 7 PSI
Motor Draws 2 Amps Current
7 1/2 Amp fuse recommended
Constant Fuel Flow with No Pulsation
Improved design for street/strip applications
Distinctive “RED” logo
Flows 97 GPH (free flow)
Flows 71 GPH at 4 PSI
Regulator is not required
Has externally accessible pressure relief valve (max 7 PSI)
Rotor/Vane pump design is more tolerant of contaminated fuels
Weighs only 2. 88 lbs.
Includes mounting bracket
Repair kits are readily available
Can be serviced from either pump end or brush cap end
NOT compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended
Not designed or recommended for use with fuel injection systems
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These are to be used with 12 volt systems only.
Lower housing casting designed for enhanced fuel flow
Maximum pressure is 7 psi
Motor draws 2 amps current
Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
Constant fuel flow with no pulsation
Improved design for street/strip applications
Not designed to be used on aircraft of any type.
Distinctive ΓÇ £Red” logo
Flows 97 GPH (free flow)
Flows 71 GPH at 4 psi
regulator is not required
Has externally accessible pressure relief valve (max 7 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 2.88 lbs
Not designed or recommended for use with fuel injection systems
Includes mounting bracket
Repair kits are readily available
Can be serviced from the pump end
Not compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended
Product :
Fuel Pump
Red
Electric
In-Line
71 gph at 4 psi
3/8 in NPT Female Inlet / Outlet
Silver
Gas
Sold Individually
