Description
*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Overall Height: 13.34″ (w/ EFI Top – 95mm or 105mm) – See Drawing
A-B Height: 12.10″ (w/ Carb Style Top – 2 x 4150 or 2 x 4500) – See Drawing
Height at Plenum Flange: 9.44″
Port Size: 2.06″ High x 1.53″ Wide
Runner Length: Approx. 6.5″
Large Plenum Volume of 549 Cubic Inches (w/ 1 x 95mm or 1 x 105mm Throttle Body Top)
Available With or Without Injector Ports in the Runners
Intakes w/ Injector Ports Include Fuel Rails w/ Dual Mounting (1.48″ or 2.56″ O-ring to O-ring injector length)
Fuel Rails are Anodized, Laser Etched, and Machined for 8AN O-Ring Fittings at Each End
Rear of Plenum Machined for MAP & 3 Vacuum Ports
Head Flange has Clearance for Fuel Supply to High Pressure Pump
Increased Runner Wall Thickness for Custom Porting at the Plenum to Runner Entry on Each Runner
O-Ring Seals at Cylinder Heads & Plenum Top
Easy Assembly w/ Top Mounted Screws on Plenum Top (all except front 2 screws)
Several Top Options: 1 x 95mm, 1 x 105mm, 2 x 4150, 2 x 4500, or Blank Flange for Custom Throttle Bodies
3500-8000+ RPM Power Band
Product :

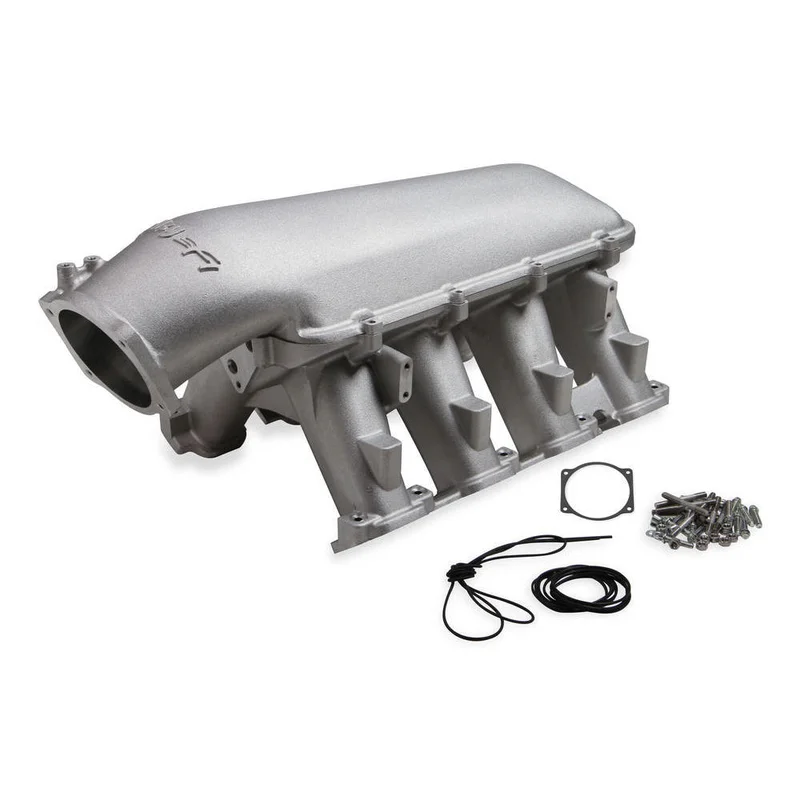

Intake Manifold
Hi-Ram EFI
92 mm Throttle Body Flange
Direct Injection
Aluminum
Satin
GM GenV LT-Series
Kit
