Description

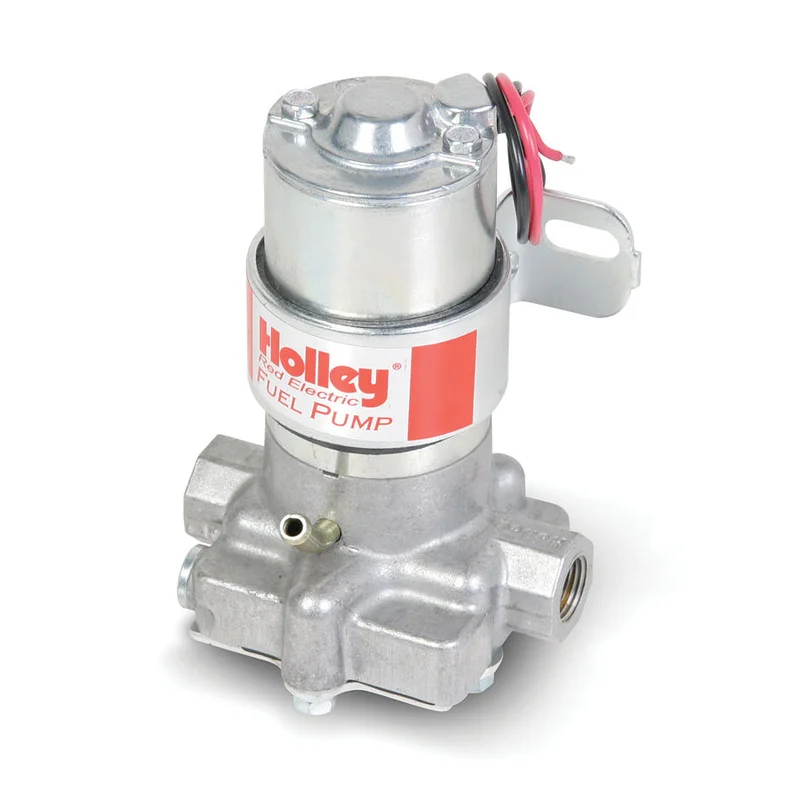

97 GPH RED® Electric Fuel Pump.
Features:
Low pressure pumps that are perfect for NOS wet system pump
New tumble polished billet look
New lower housing casting for enhanced fuel flow
Improved design for street/strip applications
Distinctive “RED” logo Flows 97 GPH (free flow)
Flows 67 GPH at 5 PSI
Pressure is pre-set at 7 PSI
Regulator is not required for most applications
Motor draws only 2 Amps current
7-1/2 Amp fuse recommended
Provides constant fuel flow with no pulsation
Has externally accessible pressure relief valve
Rotor/Vane pump design is more tolerant of contaminated fuels
Weighs only 2. 88 lbs.
Includes mounting bracket
Repair kits are readily available
Can be serviced from either pump end or brush cap end
NOT compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended
Not designed or recommended for use with fuel injection systems
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These are to be used with 12 volt systems only.
Lower housing casting designed for enhanced fuel flow and quiet operation
Maximum pressure is 7 psi
Motor draws 2 amps current
7 1/2 amp fuse recommended
Constant fuel flow with no pulsation
Improved design for street/strip applications
Not designed to be used on aircraft of any type.
Distinctive ΓÇ £Red” logo
Flows 97 GPH (free flow)
Flows 71 GPH at 4 psi
regulator is not required
Has externally accessible pressure relief valve (max 7 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 2.88 lbs
Includes mounting bracket
Repair kits are readily available
Can be serviced from the pump end
Not compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended
Not designed or recommended for use with fuel injection systems
Meets U.S. Coast Guard regulations
Includes Fuel/vapor tube
Product :
Fuel Pump
Marine Red
Electric
In-Line
71 gph at 4 psi
3/8 in NPT Female Inlet / Outlet
Silver
Gas
Sold Individually
