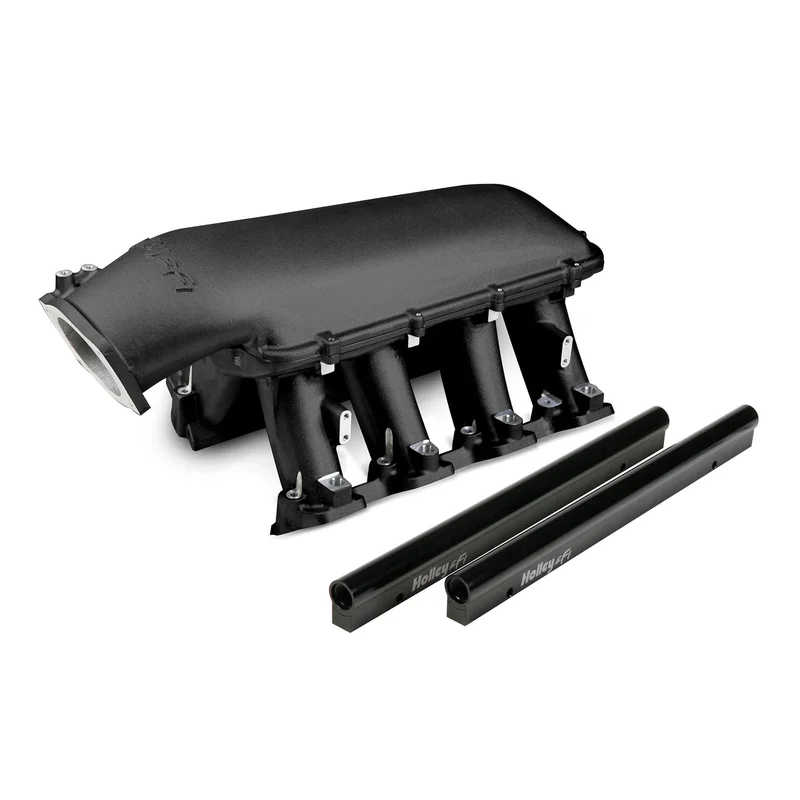

Name: Holley GM LS Hi-Ram Intake Sys. - 105mm EFI Throttle Bdy
SKU: 9551540060465
Availability: InStock

Description

*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

Total Height with 92/102mm EFI Plenum Top – 12.32″ to the lifter valley cover flange on engine block.

Port Size – 2.49″ Height x 1.21″ Wide

Mounting Flange Gasket Type – Standard LS3 Molded O-Ring

Plenum Top Gasket Type – 3/32″ Round O-ring Cord

Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42″ (from engine block lifter valley cover flange), Longitudinal Location – 3.84″ (forward from engine block front flange), Angle – 25 deg. (down from vertical)

Runner Length – 6.50″, As-Cast Runner Cross-Sectional Area – Tapered 4.25 inâ”¬â–“ to 2.77 inâ”¬â–“

Î“Ã‡Ã³ Cast aluminum construction.

Î“Ã‡Ã³ Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Product :

Intake Manifold

Hi-Ram EFI

105 mm Throttle Body Flange

Multi Port

Aluminum

Black Ceramic

LS3 / L92

GM LS-Series

Kit
